AC220V / 50Hz Customized Multi-station Six Stations Switch Endurance Tester
High quality 6 Stations Switch Endurance Tester designed for comprehensive testing of switch products with competitive pricing.
Product Overview
This tester is designed in compliance with GB2099.1, GB17465.1, and GB15092.1 standards for testing the lifespan of switch products for household and similar applications. When connected to a load box, it evaluates the electrical life of plugs, sockets, couplers, and appliance switches. Essential for quality control and inspection by electrical accessories and home appliance manufacturers.
Construction & Operation
The testing machine utilizes pneumatic cylinders to drive slide assemblies with plug fixtures, creating reciprocating linear movement to complete switch on/off actions. Action frequency and timing are controlled by PLC (programmable controller) and touch screen interface for easy operation and reliable performance.
Technical Specifications
| Test Stations |
Six stations: Station 1-2 for rotary switches, Station 3-4 for rocker switches, Station 5-6 for push-button switches |
| Test Speed |
Button switch: 5-60 cycles/minute adjustable; Rotary switch: 1-10 cycles/minute adjustable |
| Test Cycles |
1 - 999,999 cycles programmable |
| Turn-on Time |
0 - 999.9 seconds/minutes adjustable |
| Disconnection Time |
0 - 999.9 seconds/minutes adjustable |
| Rotation Speed |
5° - 360°/second programmable |
| Rotation Angle |
5° - 7200° programmable |
| Number of Gears |
1 - 10 gears programmable |
| Rotation Mode |
Clockwise rotation with stepper motor precise positioning |
| Power Supply |
AC220V / 50Hz |
| Operating Environment |
Temperature: 0-40°C, Relative humidity: ≤85%, Stable environment free from vibration and corrosive air |
Control Interface Features
The system features an intuitive touch screen interface for easy parameter setting and function selection.

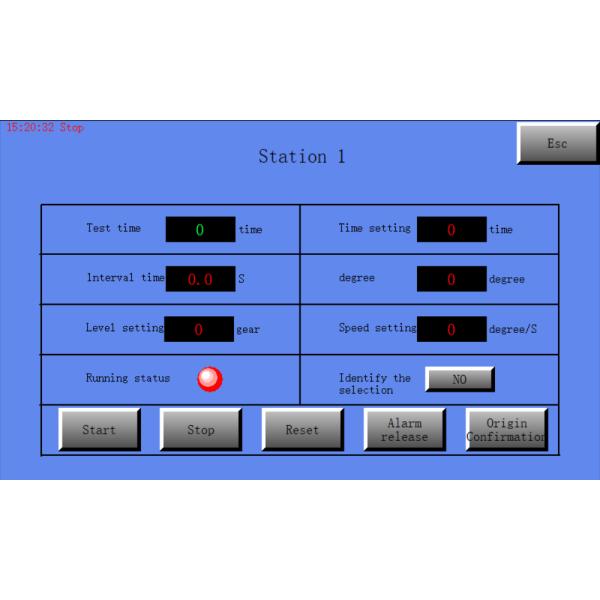

Main Control Screen
Rotary Switch Testing (Stations 1-2)
- Test cycle counter with programmable limits
- Gear time interval settings (0-99.9S)
- Test angle programming (5°-360°)
- Gear number configuration
- Rotation speed control (5°-360°/S)
- Real-time operation status indicator
- Fault detection with alarm options
- Start/stop/clear/alarm release controls
- Origin confirmation for sample protection
Rocker & Push Button Testing (Stations 3-6)
- Cycle counting with set parameters
- Turn-on time programming
- Stroke adjustment (0-50mm)
- Disconnection time settings
- Speed control (0-100mm/S)
- Operation status monitoring
- Fault identification options
- Complete control functions
Operation Procedures
Rotary Switch Installation
Install the rotary switch at initial position, clamp on right fixture, and secure rotary head with specialized handgrip.
Rocker/Key Switch Installation
Securely mount rocker or key switch in fixture and adjust positioning in all directions.
Testing Methodology
- Install specimen and manually verify normal on/off operation
- Configure all test parameters according to requirements
- Select identification option based on sample quality detection needs
- Initiate testing with Start button, monitor progress
- Automatic stop at preset cycles or manual stop as needed
- Power down equipment after testing completion
Safety & Maintenance Guidelines
- Regularly clean the instrument to maintain performance
- Avoid obstructing moving parts during operation
- Ensure proper grounding of equipment shell
